Single-Supply Op Amp Selection Guide

Components Op Amp references: TLC080, TLV2401, TLV2470, and TLV2760 single-supply op amps.

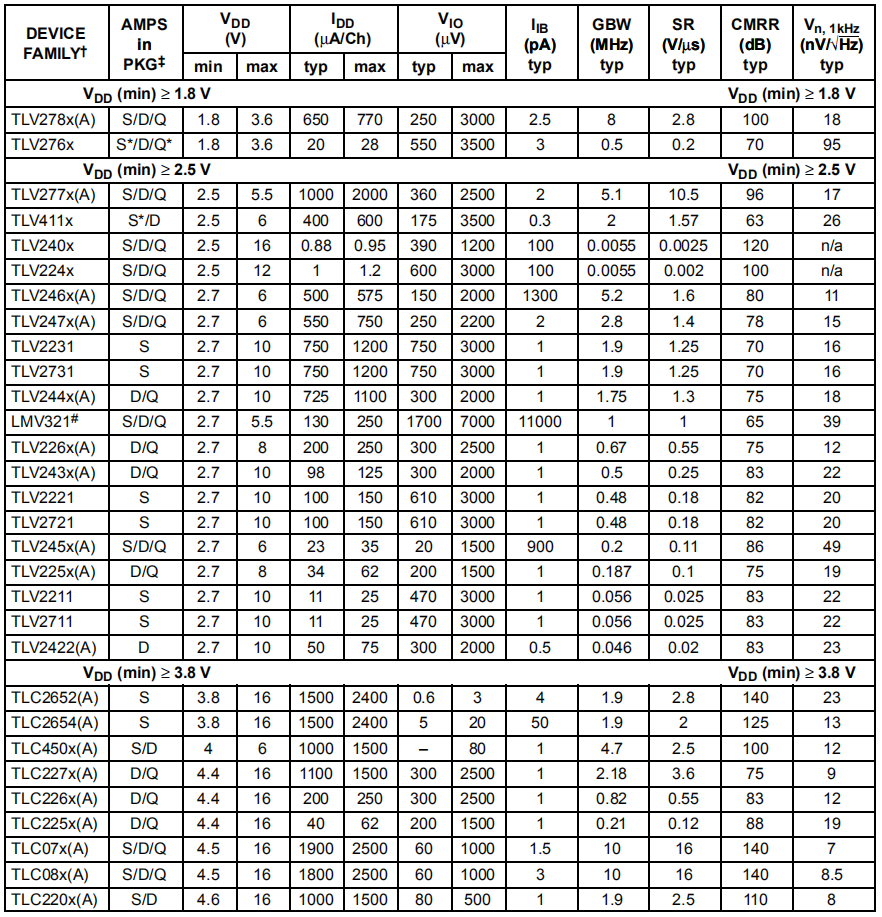

Table B–1. Single-Supply Operational Amplifier Selection Guide

Note:

Single-supply op amp selection guide parameters specified at TA = 25°C, VDD = 5 V, 2.7 V, and/or 1.8 V.

* Devices in Product Preview stage of development at press time. Please contact TI or visit www.ti.com for current status.

† (A) refers to precision grades with lower VIO and are part of the device number, e.g. TLV2470A.

‡ S = single-channel amplifier, D = dual-channel amplifier, Q = quad-channel amplifier (in the device name, replace x with 1, 2, or 4 for S, D, or Q respectively).

§ Variants of family with shutdown (in the device name, replace x with 0, 3, or 5 for single, dual, or quad amplifiers with shutdown).

¶ Measured at VO = 0.5 V from rails, except TLC07x and TLC08x where VO = 0.5 V from negative rail.

# Includes LMV358 and LMV324 devices.

Table B–1. Single-Supply Operational Amplifier Selection Guide (Continued)
